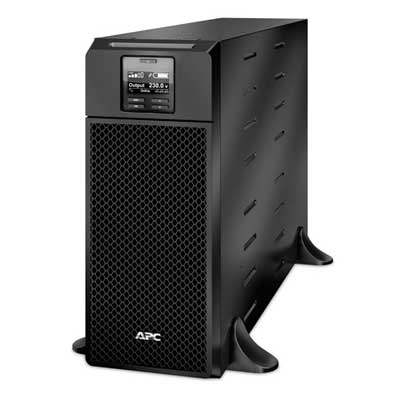

UPS APC 6.000VA Online-SRT6KXLI

DOWNLOAD DATASHEET : UPS APC SRT6KXLI DATASHEET

Thông số kỹ thuật :

Output

• Output power capacity : 6 KW / 6 kVA
• Max Configurable Power (Watts) : 6 / 6 kVA
• Nominal Output Voltage : 230V
• Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion : Less than 2%
• Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
• Other Output Voltages : 220, 240
• Load Crest Factor : 3 : 1
• Topology : Double Conversion Online
• Waveform type : Sine wave
• Output Connections
  (4) IEC 320 C19 (Battery Backup)

  (6) IEC 320 C13 (Battery Backup)

  (1) Hard Wire 3-wire (H N + G) (Battery Backup)

  (2) IEC Jumpers (Battery Backup)
• Bypass : Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage : 230V
• Input frequency : 40 – 70 Hz (auto sensing)
• Input Connections : Hard Wire 3 wire (1PH+N+G)
• Input voltage range for main operations : 160 – 275V
• Input voltage adjustable range for mains operation : 100 – 275 (half load)V
• Number of Power Cords : 1
• Other Input Voltages : 220, 240

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules : 1
• Typical recharge time : 1.5hour(s)
• Replacement Battery : APCRBC140
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• Extendable Run Time : 1
• Extended Run Options : APC-Smart-UPS-SRT-6000VA-230V
• Runtime : View Runtime Graph : View Runtime Chart
• Efficiency : View Efficiency Graph

Communications & Management

• Interface Port(s) : RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
• Control panel : Multi-function LCD status and control console
• Audible Alarm : Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO) : Yes
• Available SmartSlot™ Interface Quantity : 1

Physical

• Maximum Height : 432mm , 43.2CM
• Maximum Width : 130mm , 13.0CM
• Maximum Depth : 719mm , 71.94CM
• Net Weight : 60.0KG
• Shipping weight : 67.0KG
• Shipping Height : 330mm , 33.0CM
• Shipping Width : 610mm , 61.0CM
• Shipping Depth : 960mm , 96.0CM
• Color : Black
• Units per Pallet : 6.0

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95% non-condensing %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95% non-condensing %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 55.0dBA
• Online thermal dissipation : 703.0BTU/hr
• Protection Class : IP 20

Conformance

• Approvals : CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
• Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS : Compliant
• REACH : REACH: Contains No SVHCs
• Battery Directive : Compliant
