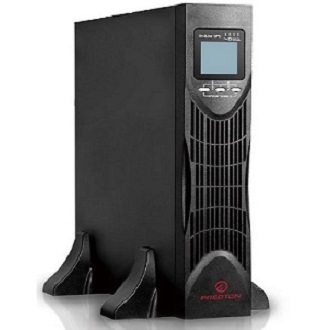

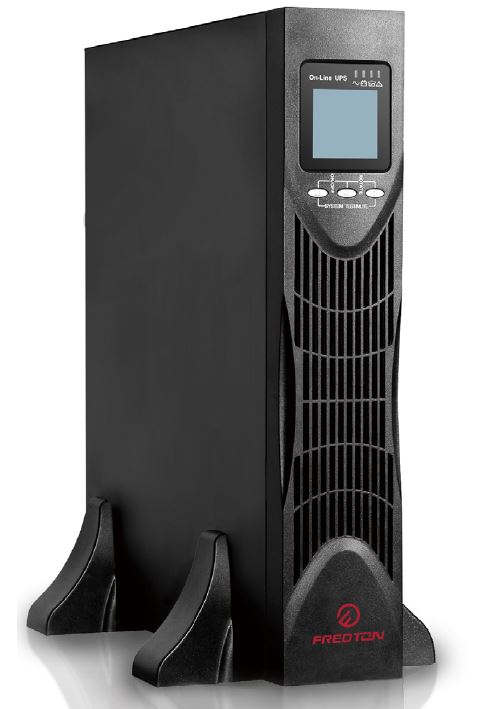

UPS Fredton 1KVA online Rackmount-F99VRT-1K

Bảng báo giá bán bộ lưu điện UPS Online 1KVA(1000VA) Fredton

PN : F99VRT-1K

Giá : 9.700.000 VND

Download datasheet tại đây : Fredton datasheet

Ứng dụng :

∙ Server
∙ Networking device
∙ Storage device
∙ Telecommunication device

THÔNG SỐ KỸ THUẬT

Topology Online

Form factor Rack & Tower

Power factor 0.9

Rating (VA/W) 1000 VA / 900 W

Dimensions (H x W x D) mm 430 x 440 x 86.5

Weight (kg) 13

Surge Protection Yes

Input

Connection IEC-320-C14; IEC-320-C20; Terminal block

Phase 1 phase

Voltage : 220/230/240 VAC . 200~290 VAC (đầy tải)

Frequency 50/60 Hz (± 10%)

Output

Connection IEC-320-C14; IEC-320-C20; Terminal block

Waveform True sin wave

Phase 1 phase

Voltage 200/208/220/230/240VAC ± 1%

Frequency : Utility (AC mode), 50/60 ± 0.1 Hz (Battery mode)

Efficiency >94%

Crest factor 3:1

Transfer time 0 ms

Connection Output Selectable

Battery

Model Sealed lead-acid, maintenance-free

Configuration 12 V x 7 Ah / 9 Ah x 3

Charge Current 1 A Tối đa 10 A

Backup time Display on LCD

Recharge time 90% capacity after 5 hours

Communication

User Interface LCD & LED

Communication Ports RS232 & USB

Communications Slots Web SNMP

Software Yes

Environment

Audible Noise (@1m) < 55 dB

Operating Temperature 0~40˚C

Humidity 0~95%

Standards compliance

Safety IEC/EN62040-1; IEC/EN60950-1

EMC : IEC/EN62040-2; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-8
