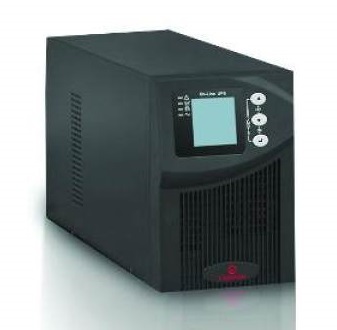

UPS Fredton 2KVA online Tower-F99VT-2K

Bảng báo giá bán bộ lưu điện UPS Online 2KVA(2000VA) Fredton

PN : F99VT-2K

Giá : 11.860.000 VND

Download datasheet tại đây : Fredton datasheet

Ứng dụng :

∙ Server
∙ Networking device
∙ Storage device
∙ Telecommunication device

Thông số kỹ thuật :

Topology : Online

Form factor : Tower

Power factor : 0.9

Rating (VA/W) : 2.000 VA / 1.800 W

Dimensions (H x W x D) mm 466 x 199 x 337

Weight (kg) 24.6

Surge Protection Yes

Input

Connection IEC-320-C14; IEC-320-C20; Terminal block

Phase 1 phase

Voltage 220/230/240 VAC (162~290 VAC)

Frequency 50/60 Hz (± 10%)

Output

Connection IEC-320-C14; IEC-320-C20; Terminal block

Waveform True sin wave

Phase 1 phase

Voltage 200/208/220/230/240VAC ± 1%

Frequency : Utility (AC mode), 50/60 ± 0.1Hz (Battery mode)

Efficiency : >94%

Crest factor : 3:1

Transfer time : 0 ms

Connection Output : Selectable

Battery

Model Sealed lead-acid, maintenance-free

Configuration 12 V x 7 Ah / 9 Ah x 6

Charge Current 1 A

Backup time Display on LCD

Recharge time 90% capacity after 6-8 hours

Communication

User Interface LCD & LED

Communication Ports RS232 & USB

Communications Slots Web SNMP

Software Yes

Environment

Audible Noise (@1m) < 55 dB

Operating Temperature 0~40˚C

Humidity 0~95%

Standards compliance

Safety : IEC/EN62040-1; IEC/EN60950-1

EMC : IEC/EN62040-2; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-8
